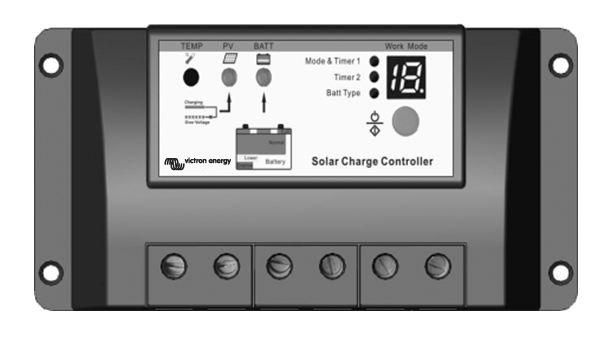

BlueSolar Charge Controller

12/24V-10A with timer

Victron Energy


Specification Summary

Nominal system voltage : 12 / 24VDC*

Maximum PV input voltage : 50V

Nominal charge / discharge current : 10A


* The controller will recognize the system rated voltage when start up. If the battery voltage is lower than 18V, it will recognize the system as 12V. If the battery voltage is greater than 18V, it will recognize the system as 24V.


Product Overview

• 12/24V automatic recognition

• Efficient Series PWM charging, increases battery lifetime and improves solar system performance.

• Uses MOSFET as electronic switch, without any mechanical switch

• Automatic day / night recognition.

• Digital LED menu.

• Intelligent timer function with 1-15 hours option.

• Unique dual timer function, enhances the flexibility of street light system.

• Gel, Sealed and Flooded battery type option.

• Temperature compensated charging and discharging.

• Electronic protection: overheating, over charging, over discharging, overload and short circuit.

• Reverse current protection.


The controller is for off-grid solar systems, especially solar light systems, and protects the battery being over charged by the solar module and over discharged by the loads. The charging process has been optimized for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage installation mistakes or system faults.


Though the controller is easy to operate and use, please take your time to read this manual and become familiar with it. This will help you make full use of all the functions and improve your solar PV system.
